Panic Bar Installation

Installing an exit device on a commercial door is a multi-step process that goes well beyond dropping a bar onto a door and tightening two bolts. Our technicians begin with a door assessment: measuring the door width and thickness, identifying the handing (left- or right-swing), confirming the frame material (hollow metal, aluminum storefront, wood), and checking whether the existing prep work — the cutouts and backset dimensions — matches the new hardware. A mismatch between these specs and the device selected is the single most common cause of a botched installation, and it is the reason DIY attempts on commercial doors frequently result in misaligned latches, rattle-prone bars, or hardware that does not retract the latch fully. Our technicians carry the tools and gauges to verify every measurement before drilling begins, keeping the job damage-free wherever the door condition allows.

For doors that already have a mortise lock body in the chassis, the process becomes more technical. A panic bar with mortise lock integration — sometimes called a mortise exit device — requires the push bar mechanism to tie directly into the mortise case so that depressing the bar retracts both the latch and the deadbolt simultaneously. This is the configuration most often required on main entry or egress doors in New Jersey commercial buildings, because it delivers single-motion egress from inside while preserving key-controlled security from outside. Getting that linkage right demands hands-on experience with mortise exit device trim, proper dogging mechanisms, and the correct cylinder prep. Our team has performed this type of installation across Bergen County office buildings, retail spaces, and mixed-use properties — we know the hardware families and the common pitfalls.

The combination of a mortise lock panic bar on a primary egress door represents the strongest balance of code-compliant egress and perimeter access control available for brick-and-mortar commercial properties in New Jersey. NFPA 101 and local fire codes mandate that any door serving as a required means of egress must open with a single motion, without keys or special knowledge, from the egress side. A mortise lock alone does not satisfy that requirement unless it is operated by a lever or knob that can be depressed in one motion — and on high-traffic commercial doors, levers wear out and deadbolts get accidentally engaged. Pairing a crash bar with a mortise lock body eliminates that ambiguity: occupants push the bar, the door opens, and security personnel or the building owner controls access from the exterior with a cylinder key or an access control credential.

Beyond the life-safety angle, this pairing also simplifies master-key systems. Because mortise lock cylinders can be keyed into virtually any pinning configuration, a building with multiple exit doors can have all hardware on a single master key while each door retains its own individual change key. Our commercial locksmith technicians can key new exit device cylinders to your existing master key system on-site, saving you a trip to a hardware store and eliminating the lag time of ordering factory-keyed cylinders. If your building in Emerson is growing — adding a second suite, subdividing a space, or absorbing an adjacent unit — we can expand your keying system at the same visit.

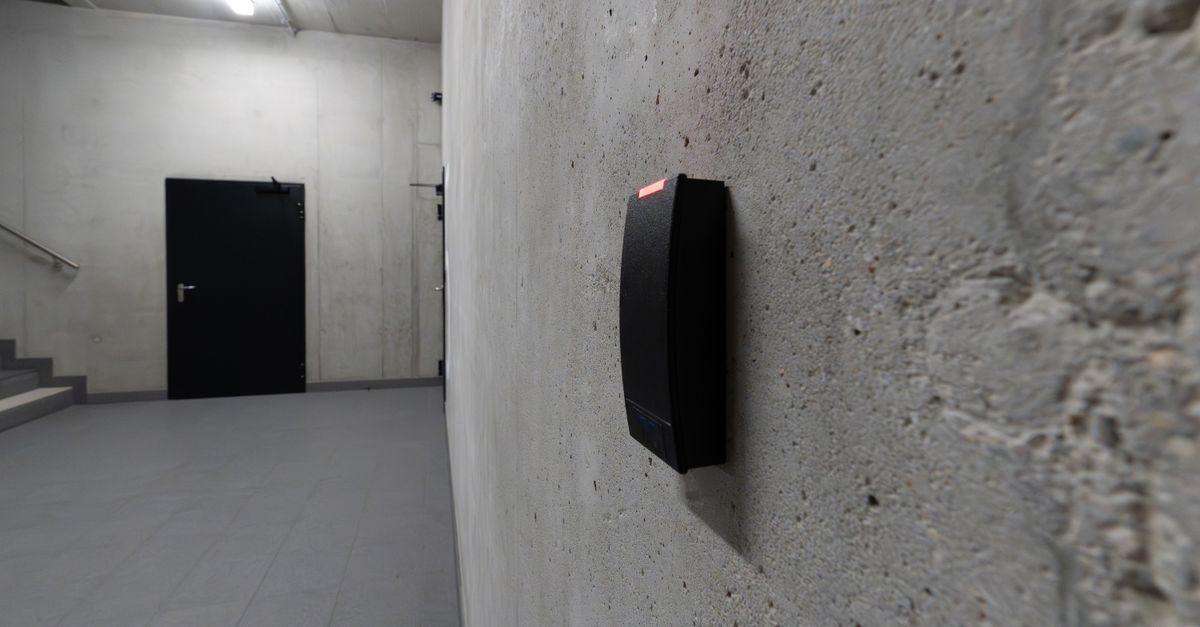

A standalone push bar handles egress, but modern Emerson commercial properties increasingly need exit hardware that communicates with broader access control and surveillance ecosystems. Electrified panic devices — models with electric latch retraction or electromagnetic lock integration — allow your crash bar to interact with card readers, keypad controllers, or remote buzzers. This means a manager in a back office can grant after-hours access through a door reader while the panic bar remains fully functional for emergency egress at all times. Our technicians are experienced in wiring electric strikes, electromagnetic locks, and request-to-exit sensors in conjunction with exit device installation, giving brick-and-mortar businesses a layered security posture that matches what larger commercial campuses have used for years.

Surveillance ties into this naturally. When exit hardware is electrified and tied to an access control panel, every door event — entry, egress, forced-door alarm — can generate a log entry visible through your camera management system. We work alongside your existing surveillance infrastructure, advising on door contact placement and RTE sensor positioning so that the alarm and camera systems get reliable triggers. For businesses on Emerson's retail corridors that have experienced after-hours door tampering or unauthorized access, this integration turns a simple exit device into an active monitoring point. Whether you are a single-location shop or a multi-unit commercial property, our team structures the hardware to fit the security architecture you already have — or helps you build one from scratch.

While panic bars are predominantly a commercial and institutional product, certain residential applications are legitimate and increasingly common — large daycare operations run from residential-zoned buildings, home-based businesses with regular staff or visitor traffic, and multi-family properties with fire-rated corridor doors. If you operate any such space in or around Emerson and have been told by an inspector that your egress door needs compliant exit hardware, our team handles those installations with the same thoroughness we bring to purely commercial jobs. We are also available for panic bar repair calls: worn springs, broken dogging mechanisms, misaligned latch projections, and faulty through-bolts are all field-repairable in most cases, often during a single visit without ordering replacement hardware.

When you call to request service, the price we confirm before starting the work is shaped by several honest factors: the type and brand of exit device selected or supplied, whether a mortise lock body replacement or rekey is part of the scope, the time of day (our 24/7 availability means we respond at 2 a.m. just as readily as at 2 p.m.), travel distance from our current position to your Emerson location, and the condition of the existing door prep. We never quote one number and invoice another — the price you agree to is the price on the receipt. If you are anywhere in the Emerson area and need fast, trustworthy service from a local mobile locksmith, call (201) 485-3403 and we will give you a clear, no-surprise quote before any work begins.

Trusted Key Locksmith covers the full range of exit device and commercial door hardware needs for businesses in Emerson and the surrounding Bergen County area. Our specific service capabilities include: new panic bar installation on single and double commercial doors; crash bar installation on aluminum storefront frames; mortise lock panic bar integration and exit device trim installation; electric latch retraction device wiring and fitting; electromagnetic lock installation on fire-rated doors with proper fail-safe/fail-secure configuration; door contact sensor installation for alarm and access control integration; request-to-exit (RTE) sensor mounting and adjustment; commercial mortise lock installation and replacement; mortise lock rekey to existing master key systems; commercial door knob lock and lever replacement; grade-1 deadbolt installation for commercial frames; cylindrical lockset replacement on interior office doors; access control keypad and card reader mounting; electric strike installation and alignment; panic bar dogging mechanism repair; latch and deadbolt realignment after door settling or frame shift; broken push bar spring replacement; through-bolt tightening and structural re-anchoring of loose exit devices; storefront door closer adjustment and replacement; commercial door hinge reinforcement; key duplication for commercial mortise and rim cylinders; master key system design and expansion; after-hours emergency lockout response for commercial properties; lock change and hardware upgrade following a break-in; and full exit device inspection and compliance-readiness assessment for NJ commercial properties.
